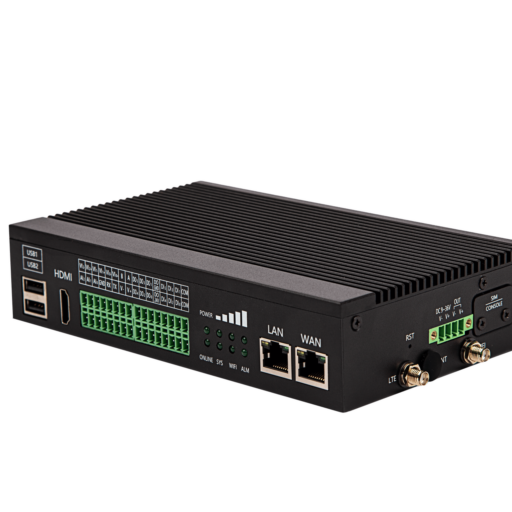

EG500 WiFi HaLow Gateway
- Powered by high-performance Raspberry Pi CM4.
- Leverage SX-NEWAH module
- GbE Wired, 4G LTE, 2.4G/5G WiFi for WAN connectivities.
- Industrial-grade carrier board with RS232/RS485/DI/DO and enclosure.
Elastel EG500 is an industrial Edge computing Gateway designed for IoT applications. Powered by Raspberry Pi CM4. Expanded I/O ports for industrial needs, Diverse Connectivities options, and ture IPC-grade enclosure…, These allows it perfect for IoT Gateway, data acquisition, Industrial Controller, Edge Computing…. Applications.
EG500 features powerful edge computing capabilities, equipped with RS232, RS-485, DI, DO, and ADC typical industrial interfaces. It realizes data processing at the network edge in real time for high-performance IoT deployments. significantly reduces the data flow between field sites and data center.
With 4G/LTE, CAT6/CAT4/3G/2G/LTE CAT M1(eMTC) and NB-IoT cellular network, Dual-band 2.4GHz/5GHz Wi-Fi, dual Gigabit Ethernet, and Elastic Linux based OS, it’s easy to deploy and interoperate with IoT platform like Microsoft Azure, AWS, ThingsBoard, etc.
Powered by Raspberry Pi CM4 which featured high-performance edge computing capabilities, it’s easy to build up your IoT projects and PoC applications.

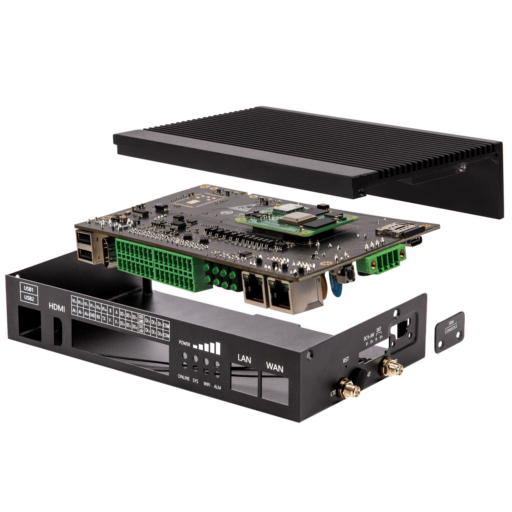

From computing module, communication module to each electronic components, EG500 adopts strict industrial grade standards. Solid and durable housing and SIM lock secure it at your remote edge field .
With the Raspberry Pi CM4 running up to 1.5GHz computing capability, and flexible Linux Operating System, EC500 could be applied in many kinds of scenarios.
With Serial ports and DI & DO ports available, and take advantage of Software-defined PLC, EG500 can easily operate as a typical PLC.
Data collecting from slave devices, analyzing and storing. And with flexible configuration, it is perfect as a protocol and interface converter Gateway.
With a built-in cellular module, EG500 can be configured as an industrial modem and router operating in 4G/LTE, 3G, NB-IoT mobile network. Easily remote access in by build a VPN or a defined public IP.
The Compact and high reliability design with HDMI port, allows EG500 operate as a micro server. Raspberry Pi compatibility and Linux OS provides computer operation possibility.
CPU | RPI CM4, Quad-core A72 (ARM v8)@ 1.5 GHz |
Memory | 1GB/2GB/4GB/8GB options LPDDR4 |
Flash | 8GB/16GB/32GB options eMMC |
Ethernet | 2x Gigabit Ethernet, (1-WAN+1-LAN or 2-LAN Configurable) |
Cellular | 1x mPCIe for 4G LTE, 3G, 2G, NB-IoT, CAT-M1 cellular modules |
Wi-Fi | Dual Band 2.4GHz & 5GHz + Bluetooth 5.0 |

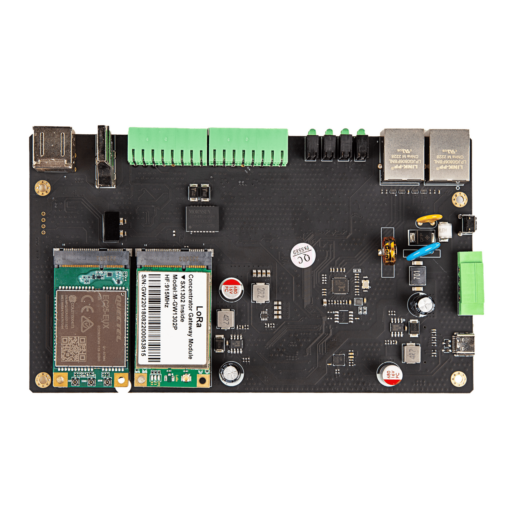

LoRaWAN | 1x mPCIe slot for LoRaWAN modules, Compatible with LoRaWAN modules powered by Semtech SX1301/1302 |

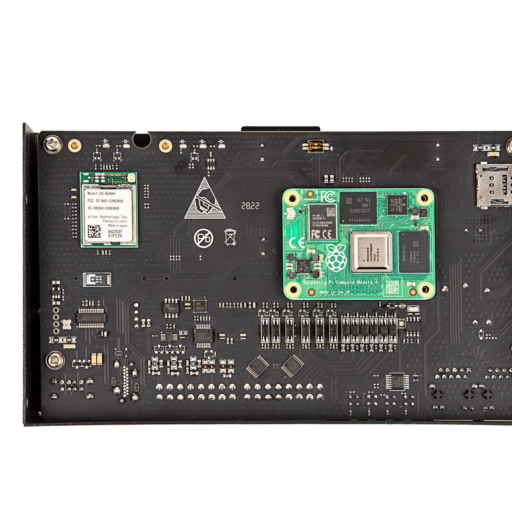

WiFi HaLow (802.11ahWiFi) | Reserved mount points for SX-NEWAH from SilexTechnology |
GPS | Cellular Module built-in supported (Optional) |
Serial Ports | Isolated RS-232 x 1, RS-485 x 1; |
I/O | 6-channel digital input DI (0..24VDC, Configurable Status/Count mode) |
3-channel Analog input AI (0-10VDC, 4-20mA, 18-bit resolution) | |
6-channel digital/pulse output DO with overvoltage protection (0..60V, Max. power effciency: 500 mA) | |
USB | USB 2.0 x 2 for peripherals, |
USB-C x 1 for debug Console | |
HDMI | HDMI 2.0 x 1, (Up to 4kp60 video & audio output) |
Power Supply | Wide Range Voltages 9~36V DC/1A, recommended 24V/1.5A |
Enclosure | Full Aluminum, IP30, DIN-rail |
Dimensions (mm) | 187mm x 112mm x 42mm |
Weight | 780g (1.72 lb) |
Operating Temperature | -25 ~ 70°C (industrial grade) |
Watchdog | Standalone Hardware Watchdog |
OS | ElastOS (OpenWRT based), Raspbian with WebUI |
Application Features | Data Acquisition, Modbus RTU/TCP, Siemense S7, Mitsubishi FX PLC protocls… |
Uninterrupted Network manage,VPN, TCP/UDP, MQTT, HTTP, OPC UA, BACnet… | |
Support Secondary Development, Codesys, Ignition Edge, Python, Node-RED, Docker … |
Hardware platform | |
CPU | RPI CM4, Quad-core A72 (ARM v8)@ 1.5 GHz |
Memory | 1GB/2GB/4GB/8GB options LPDDR4 |
Flash | 8GB/16GB/32GB options eMMC |
Network & Interfaces | |
Ethernet | 2x Gigabit Ethernet, (1-WAN+1-LAN or 2-LAN Configurable) |
Cellular | 1x mPCIe for 4G LTE, 3G, 2G, NB-IoT, CAT-M1 cellular modules |
Wi-Fi | Dual Band 2.4GHz & 5GHz + Bluetooth 5.0 |
LoRaWAN | 1x mPCIe slot for LoRaWAN modules, Compatible with LoRaWAN modules powered by Semtech SX1301/1302 |
WiFi HaLow (802.11ahWiFi) | Reserved mount points for SX-NEWAH from SilexTechnology |
GPS | Cellular Module built-in supported (Optional) |
SIM | 1.8 V/3 V; drawer-type Nano card holder × 1 |
15KV ESD Protection | |

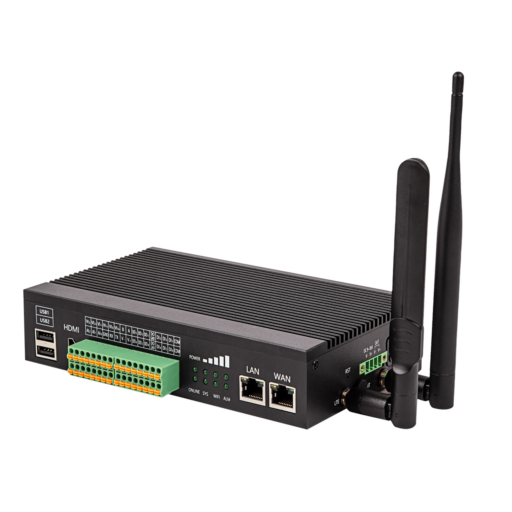

Antenna | 4G: inside SMA x 1、WiFi/Buletooth: inside SMA x 1, LoRa/WiFi Halow: inside SMAx1 |
Industrial Serial Ports | RS-232 x 1,RS-485 x 1; |
RS-232 signal: TXD, RXD, GND; RS-485 signal: A, B, GND; ESD protection: 15KV | |

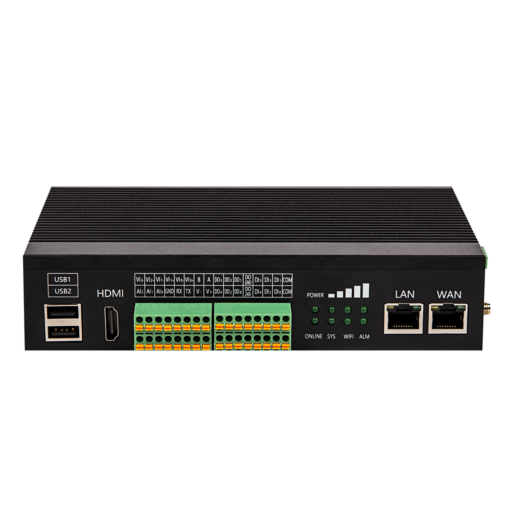

I/O | 6-channel digital input DI (0..24VDC, Configurable Status/Count mode) |
3-channel Analog input AI (0-10VDC, 4-20mA, 18-bit resolution) | |
6-channel digital/pulse output DO with overvoltage protection (0..60V, Max. power effciency: 500 mA) | |
USB | USB 2.0 x 2 for peripherals, |
USB-C x 1 for debug Console | |
HDMI | HDMI 2.0 x 1, (Up to 4kp60 video & audio output) |
Reset Button | Supported |
Power | |

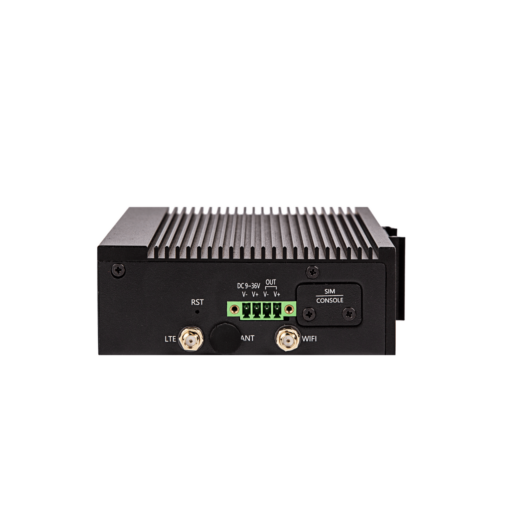

Power Supply | Wide Range Voltages 9~36V DC/1A, recommended 24V/1.5A |
Power Terminal | Unpluggable industrial terminal connection |
Power consumption | Less than 10 W (system) |
Power Output | 2-channel power supply for slave devices, same value as Power input (24V) |
Mechanical features | |
Protection | IP30 |
Housing | Aluminum Heatsink |
Cooling | Fanless cooling |

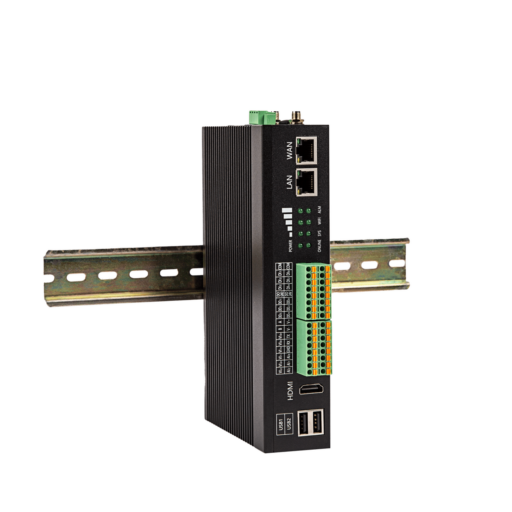

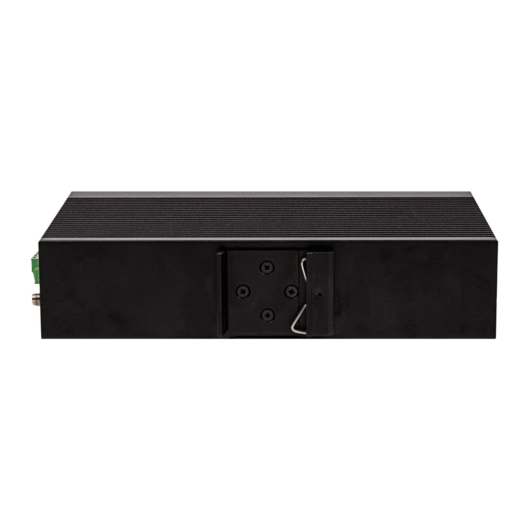

Installation | DIN-rail, wall mounting |
Ambient temperature and humidity | |
Storage temperature | -30 ~ 75°C |
Ambient humidity | 5 ~ 95% (non-condensing) |
Operating Temperature | -25 ~ 70°C (industrial grade) |
EMC index | |
Static electricity | level 3 |
Radiated electric field | level 3 |
Surge | level 3 |
Others | |
LED Indicator | 1-POWER, 1-WiFi, 1-SYSTEM, 1-ALARM,1-ONLINE, 3-Signal Strength |
Watchdog | Standalone Hardware Watchdog |
Warranty | Standard 12 Months |
Software Features | |
OS | ElastOS (OpenWRT based) with Data Acquisition programs Optimized Raspbian with WebUI |
Configuration | WebUI, Local CLI, Remote configuration |
Upgrade operate | Local USB upgrade and Remote upgrade |
Timed startup and shutdown | Supported |
Application Features | Data Acquisition, Modbus RTU, VPN, Router, Firewall, Media Player… |
Python, Node-RED, Docker…, | |
Support Secondary Development with SDK | |
Network Features | PPP, PPPoE, SNMP v1/v2c/v3, TCP, UDP, |
DHCP, RIPv1/v2, OSPF, BGP, DNS, DDNS, | |
Modbus RTU/TCP, Siemens S7, OPC UA, BACnet, HTTP, MQTT, ARP, QoS, SNTP, Telnet, SSH… |
