ElastBox400 Industrial Computer
ElastBox400 is an industrial-grade edge computer designed for industrial IoT applications.
Powered by high-performance Raspberry Pi Compute Module 4, with 4G/LTE Compatible, dual Gigabit Ethernet, dual USB ports, and dual HDMI 4K Ultra HD output makes ElastBox suitable for Unattended Retail, Digital Signage, Public Transportation Advertising, NAS applications, etc.
- Description
- Specifications
- Downloads
Product Description
The ElastBox400 is an industrial computer designed for industrial IoT applications. Powered by Raspberry Pi CM4, high-performance ARM Cortex-A72 1.5GHz CPU, with 2GB RAM and 8GB eMMC(diverse RAM and Storage optional), which enables ElastBox400 performing edge computing at a microserver level hardware platform.
Compatible with 4G LTE network, and 2x Gigabit Ethernet connectivity. 2x HDMI up to 4K Ultra HD output, 1 x reserved M.2 socket with 2280 NVME SSD, advanced peripherals on dual USB ports, the ElastBox400 is the engine of unattended retail solutions. Benefit from Raspberry Pi OS and thriving open-source programms, it allows develop various kinds of applications as your needs.
High-performance Computer
- Powered by Raspberry Pi Industrial CM4, ARM Quad-core Cortex-A72 1.5GHz
- 2GB RAM + 8GB eMMC (diverse RAM and Storage optional), M.2 NVME Socket for expandable SSD
- Dual HDMI Up to 4K Ultra HD video output
- High-speed and Reliable LTE 4G/3G cellular, 2.4G/5G Wi-Fi, 2x Gigabit Ethernet connectivity
Configurable Operating System
- Raspberry Pi ecosystem programs Compatible
- Optimized OpenWRT firmware, docker, Node-RED, Python… available
- Pre-built software bundled for common usages
- Multimedia Ready: interoperate with cloud advertising system
- Easy secondary customization with SDK provided by Elastel
Industrial Design
- Fanless design, low power consumption
- Wide temperature -20°C to +70°C for endure harsh environments
- EMC & ESD Protection, 1.5 kV RMS Ports Isolation
- Inside 4G and WiFi antennas with secure and reliable communication
- Physcial switch button for Data Protection power on/off
Applications
Benefit from High level hardware specification, ElastBox has powerful computing capability can be used for many kinds of applications.
Industrial IoT Router
With 4G/LTE/NB-IoT, Lora, Zigbee and WiFi integration compatibility, ElastBox is perfected as an industrial iot Router.
Multimedia Server Player
With 2x HDMI 2.0a ports which can export up to 4kp60 media, ElastBox can perfectly for Advertising, Digital Signage.
Network-Attached Storage (NAS)
M.2 socket with 2280 NVME SSD supported which allows ElastBox as a Network-Attached Storage.
Proof of Concept Trial
Powerful and open Linux OS environment makes secondary development easy for you PoC any kinds of applications.
Specification
CPU | Broadcom BCM2711, Quad-core A72 (ARM v8)@ 1.5 GHz |
RAM | 2GB (1GB/4GB/8GB optional) LPDDR4 |
Storage | 8GB (16GB/32GB optional) eMMC |
Ethernet Ports | 2x 10/100/1000Mbps (1-WAN+1-LAN or 2-LAN Configurable) |
Cellular Network | 4G LTE/3G/2G/NB-IoT |
Wi-Fi Network | Dual-band 2.4GHz/5GHz WiFi |
HDMI | 2 (Up to 4kp60 supported) |
USB | 2 |
Additional drive | NVME socket |
Power | USB-C 5V/3A |
Operating System | Optimized Raspbian Linux |
Software Features | WebUI, CLI, VPN, NAS, Media Player, Route Control…, Support Secondary Development |
Dimensions | 98x98x38 mm |
Check The Specifications Tab for more details.
Specifications
Elastx400 Specifications | |
Hardware platform | |
CPU | Broadcom BCM2711, Quad-core A72 (ARM v8)@ 1.5 GHz |
Memory | 2GB (2GB/4GB/8GB optional) LPDDR4 |
Flash | 8GB (16GB/32GB optional) eMMC |
Network & Interfaces | |

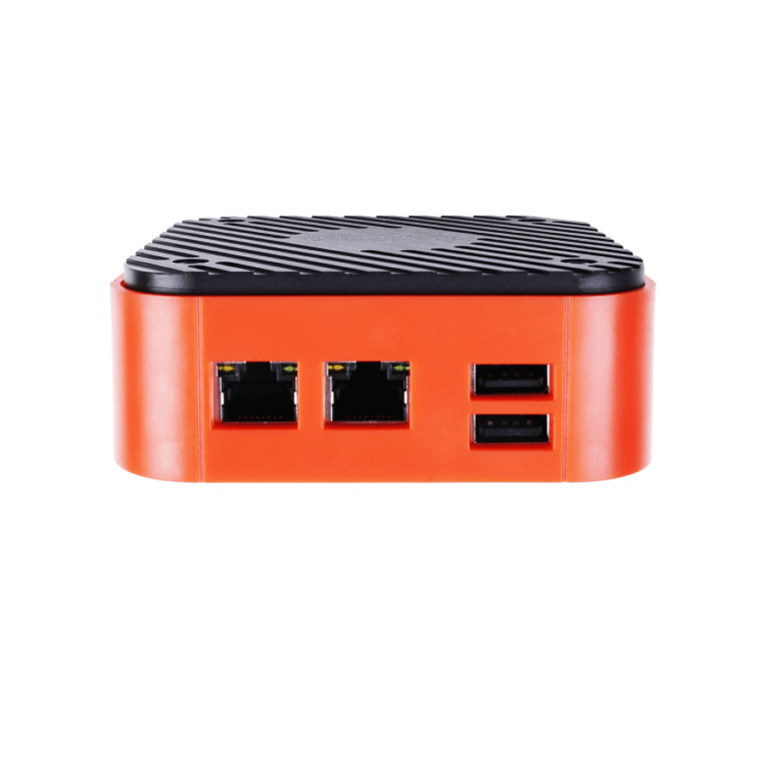

Ethernet | Gigabit Ethernet x 2, (1-WAN+1-LAN or 2-LAN Configurable) |
Cellular | 4G LTE CAT4, 3G, 2G, NB-IoT, CAT-M1 |
Wi-Fi | Dual-band 2.4GHz/5GHz 802.11b/g/n |
Bluetooth | Supported |
GPS | Cellular Module built-in supported (Optional) |
SIM | 1.8 V/3 V; drawer-type Nano card holder × 1 |
15KV ESD Protection | |
Antenna | 4G: inside SMA x 1、WiFi/Buletooth: inside SMA x 1 |
USB | USB 2.0 x 2 for peripherals, |
USB-C x 1 for Power supply and Console | |

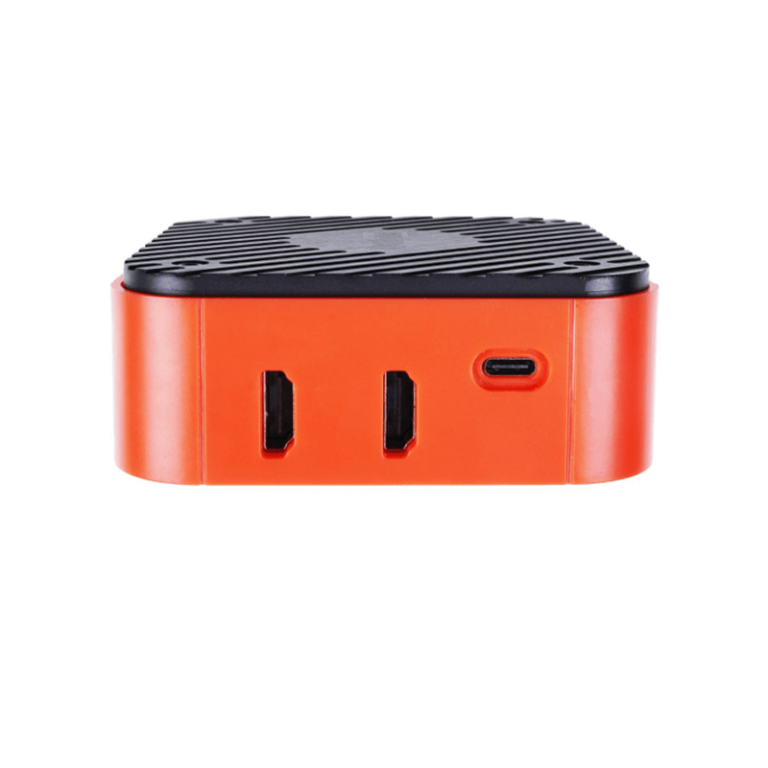

HDMI | HDMI 2.0 x 2, (Up to 4kp60 video & audio output) |
Additional drive | 1 x M.2 socket with 2280 NVME SSD support |
40 pin standard Raspberry PI HAT connector (Adaptor line needed ) | |
Power | |
Power Supply | 5V/3A via type-C port |
Power switch | Switch button for power on/off |
Power consumption | Less than 10 W (system) |
(Optional) Real-time clock (RTC) | Embedded RTC, power supply with a supercapacitor |
Mechanical features | |
Protection | IP30 |
Housing | Aluminum Heatsink with ABS Body |
Cooling | Fanless cooling |
Dimensions (cm) | 98mm x 98mm x 38mm |
Ambient temperature and humidity | |
Storage temperature | -30 ~ 75°C |
Ambient humidity | 5 ~ 95% (non-condensing) |
Operating Temperature | -20 ~ 70°C (industrial grade) |
EMC index | |
Static electricity | level 3 |
Radiated electric field | level 3 |
Surge | level 3 |
Others | |
Certication | CE |
Warranty | Standard 12 Months |
Software Features | |
OS | Optimized Raspbian with SDK /OpenWRT V21 |
Configuration | GUI, WebUI, Local CLI, Remote configuration |
Upgrade operate | Local USB upgrade and remote upgrade (optional) |
Timed startup and shutdown | Supported |
Application Features | VPN, Route Control, Firewall, NAS, Media Player… |
Node-RED, Docker…, | |
Support Secondary Development. | |
Network Features | WWAN and WAN Failover, Load Balance, |
PPP, PPPoE, SNMP v1/v2c/v3, TCP, UDP, | |
DHCP, RIPv1/v2, OSPF, BGP, DNS, DDNS, | |
Modbus RTU/TCP, Siemens S7, OPC UA, BACnet, HTTP, MQTT, ARP, QoS, SNTP, Telnet, SSH… |
