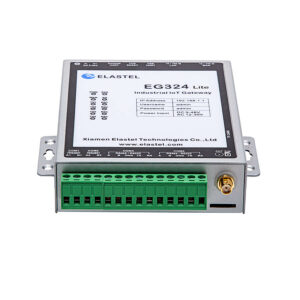

EG324 Lite IoT Gateway

The Elastel EG324 Lite IoT Gateway is an ARM-based IoT gateway reduced CPU and RAM capabilities from EG324 for balancing sufficient performance and cost saving.

  • ARM Quad-core A35@800MHz CPU, 128MB RAM + 8GB eMMC
  • 4x Isolated RS485/RS232 for industrial data acquisition
  • Dual auto-sensing 10/100 Mbps Ethernet
  • Mini-PCIe slot for 4G LTE/3G/2G/NB-IoT/Cat M1 Cellular Network
  • Linux OS with prebuilt Web-based data acquisition programs

These features allow EG324 Lite easy be configured and large-scale deployments for data acquisition, remote monitoring and communication… applications.

  • Description
  • Specifications
  • Downloads

Product Description

The EG324 is an Arm-based high-performance industrial gateway, with 4x RS485/RS232 serial ports and built-in 4G LTE available, this powerful and compact package makes it prefect for data acquisition and communication applications. Also suitable for various of industrial solutions.

With full industrial-grade design, guarantee this compact embedded computer reliably working on wide temperature, electromagnetic, lightning surge…..harsh environment.

Leverage the Linux OS, pre-built common data acquisition drivers like Modbus, MQTT, OPC UA, and a WebUI for easy configuration and programming, the EG324 Lite is capable of easy and simple implementation for your various complex Industrial IoT solutions



Industrial-Grade Design

EG324 Lite adopts strict industrial grade standards in each electronic components and full structure design, to suit the wide temperature and Hazard in field, also coming with Rugged IP30 enclosure protection makes it ideal for the harsh environments.

Specification



CPU ARM  Dual-core A35 @800MHz
Pre-installed OS Linux 5.10 with webUI management system
DRAM 128MB DDR3
Storage Pre-installed 8 GB eMMC
Storage Slot SD slot x 1
Serial Ports 2 x RS485 + 2 x RS-232/485
Ethernet Ports 2 x Auto-sensing 10/100 Mbps ports (RJ45 connector) , 1x WAN, 1xLAN or 2xLAN configurable
Cellular module Slots 1 x mPCIe slot for Cellular module
Number of SIMs 1
USB 2.0 1 x USB 2.0, type-A connector
Console Port 1 x UART type-C connector
Button 1x button for Reset and Upgrade
Power Input Voltage 9 ~ 48 VDC, 12 ~ 30 VAC
Power Consumption Working Mode: 6 W Peak Power: <10 W
LED Indicators Power x 1, System (programmable) x1, Cellular WAN x1, WAN x1, COM trans x 8 (TX + RX)
Buzzer Built-in buzzer x 1, for Warning alarm ( Programmable)
Alert Tools External RTC (real-time clock)
Automatic Reboot Trigger External WDT (watchdog timer)
Dimensions 128.8mm×117mm×28mm (L×W×H)
Housing Metal
Installation DIN-rail mounting Wall mounting
Weight 470 g (1.04 lb)
Ambient Relative Humidity 5 to 95% (non-condensing)
Operating Temperature -40 to 85°C (-40 to 185°F)
OT-to-IT Protocols Modbus RTU/ASCII Master/Slave, Modbus TCP/IP Server/Client, SNMP, Siemense PLC S7, Mitsubishi FX serial,

BACnet, MQTT, OPC UA…

Check The Specifications Tab for more details.



Modbus Gateway

Support the Modbus RTU/TCP/ASCII protocols Data collecting from slave devices, convert and transmit to remote side. EG324 Lite could be the Modbus Gateway for your OT-to-IT solutions.

Industrial cellular Gateway

With a built-in mPCIe slot for cellular module, 2x 10/100 Mbps Ethernet ports, EG324 Lite can be configured as an industrial 4G modem or gateway. Easily remote access in by build a VPN ,DDNS, or Macchina service.

Specifications

System
CPU ARM Dual-core A35 @800MHz
Pre-installed OS Linux 5.10 with webUI management programs
DRAM 128MB (512MB optional)
Storage Pre-installed 8 GB eMMC
Storage Slot SD slots x 1
Serial Interface
Serial Ports 2 x RS485 + 2 x RS-232/485
Bondrate 300 bps to 921.6 kbps
Data Bits 5, 6, 7, 8
Parity None, Even, Odd, Space, Mark
Stop Bits 1, 1.5, 2
Protection Surge 4KV
ESD ±15kV IEC61000-4-2 Air Discharge
ESD ±15kV Human Body Model
Ethernet Interface
Ethernet Ports 2 x Auto-sensing 10/100 Mbps ports (RJ45 connector) , 1x WAN, 1xLAN or 2xLAN configurable
Protection Surge 2KV
ESD ±15kV IEC61000-4-2 Air Discharge
ESD ±15kV Human Body Model
Cellular Interface
Cellular module Slots 1 x mPCIe slot for Cellular module
Number of SIMs 1
SIM Format Micro SIM (12mm*15mm)
Cellular Antenna Connector SMA
Band Options US model:
4G LTE FDD@ B2/B4/B12/B13;
3G WCDMA@ B2/B4/B5;
Carrier Approval: Verizon, AT&T
EU model:
4G LTE FDD@ B1/B3/B7/B8/B20/B28A;
4G LTE TDD@ B38/B40/B41;
3G WCDMA@ B1/B8;
2G GSM@ B3/B8;
AU model:
4G LTE FDD@ B1/B2/B3/B4/B5/B7/B8/B28;
4G LTE TDD@ B40;
3G WCDMA@ B1/B2/B5/B8;
2G GSM@ B2/B3/B5/B8;Other options please contact Elastel representative.
USB Host
USB 2.0 1 x USB 2.0, type-A connector
Power output 5V@500mA
Protection Output Over Load protection
ESD ±8kV IEC61000-4-2 Air Discharge
ESD ±6kV Human Body Model
Other Interface
Console 1 x UART type-C connector
Buttons 1x button for Reset and Upgrade
Power Parameters
Standard Power DC 12V/1.5A
Input Voltage 9 ~ 48 VDC, 12 ~ 30 VAC
Power Consumption Working Mode: 6 W
Peak Power: <10 W
Protection Overvoltage & polarity reverse protection
Surge 4KV
ESD ±15kV IEC61000-4-2 Air Discharge
ESD ±15kV Human Body Model
Indicators
LED Indicators Power x 1, System (programmable) x1, Cellular WAN x1, WAN x1,
COM<x> trans x 8 (TX + RX)
Cellular LED status Searching network: Slow flashing (200ms ON/1800ms OFF)
Idle Status: Slow flashing (1800ms ON/200ms OFF)
Transmission: Fast flashing (125ms ON/125ms OFF)
Buzzer Built-in buzzer x 1, for Warning alarm ( Programmable)
Reliability
Alert Tools External RTC (real-time clock)
Automatic Reboot Trigger External WDT (watchdog timer)
Physical Characteristics
Dimensions 128.8mm×117mm×28mm (L×W×H)
Housing Metal
Installation DIN-rail mounting
Wall mounting
Weight 470 g (1.04 lb)
Environmental Limits
Ambient Relative Humidity 5 to 95% (non-condensing)
Operating Temperature -40 to 85°C (-40 to 185°F)
Storage Temperature (package included) -40 to 85°C (-40 to 185°F)
Package Contents
Device 1 x EG324 IoT Gateway with Terminal Block preinstalled
Antenna Mag-mount Cellular Antenna (SMA
Male, 1 meter, 12dBi)
Installation Kit 1 x DIN-rail kit
Power Adapter DC 12V/1.5A (optional)
Warranty
Warranty Period 1 year
